Wi-Fi designed with small businesses in mind
Designed for harsh outdoor environments which could encounter rain, snow, hail, or extreme temperatures.
Small businesses are facing a number of challenges due to new and emerging technology, making it pretty overwhelming to keep up.
Mobile devices and cloud-based applications such as Microsoft Office 365 are changing the way you engage with customers, suppliers and staff. And because Wi-Fi plays such a crucial role today, you need a purpose-built solution that keeps your business on the go. It’s tough enough to set up a new payroll system or choose the most effective point of sale solution – choosing the best Wi-Fi for your business shouldn’t be hard.

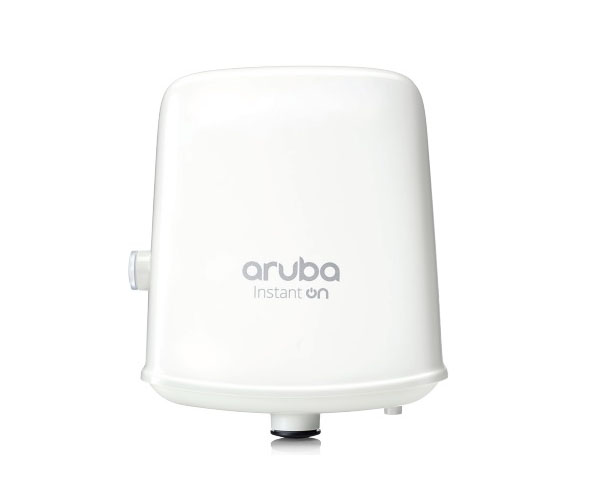

The Aruba Instant On AP17 outdoor access point is the ideal solution for expanding coverage and signal strength for any wireless network. The outdoor-rated enclosure is designed for harsh outdoor environments, extending quality Wi-Fi to outdoor seating areas in restaurants and cafés, or patios and swimming pools in boutique hotels.
|IN THE BOX
|Aruba Instant On AP17 Access Point
Aruba Instant On AP17 Quick Start guide
Wall mount bracket (solid surface)
|Dual radio for simultaneous dual-band operation
5 GHz 802.11ac 2×2 MIMO for up to 867 Mbps wireless data rate, with Multi User MIMO support (Wi-Fi 5)
2.4 GHz 802.11n 2×2 MIMO for up to 300 Mbps wireless data rate (Wi-Fi 4)
|10/100/1000 BASE-T Ethernet (RJ45)
Bluetooth Low Energy (BLE) radio
LED status indicator
|156mm x 67mm x 187mm (excluding mount accessories)
|Power over Ethernet (PoE): 802.3af power consumption 13.5W max
|Two dual-band omni- directional antennas (4.7 dBi gain at 2.4 GHz, 4.2 dBi gain at 5 GHz)
|The access point ships with a mount bracket, can be mounted on the wall or a pole
|COMPLIANCE AND SAFETY
|IEC 60950/62368 CB
|UL2043 for air-handling space (plenum rating)
|ENVIRONMENTAL & RELIABILITY
|-40° C to +50° C (-40° F to +122° F)
|5% to 93% non-condensing
|300khrs (34yrs) at +25° C
|WPA2, WPA3, Enhanced Open (OWE)
Wi-Fi Alliance certified (WFA) 802.11ac Wave 2 (Wi-Fi5)
|Instant On mobile application (Android & iOS)
Cloud Portal: Portal.ArubaInstantOn.com
|WARRANTY & SUPPORT
|Aruba Instant On 1 Year warranty with 24X7 phone support for first 90 days and chat support for the entire warranty period. Community support as long as you own the products
