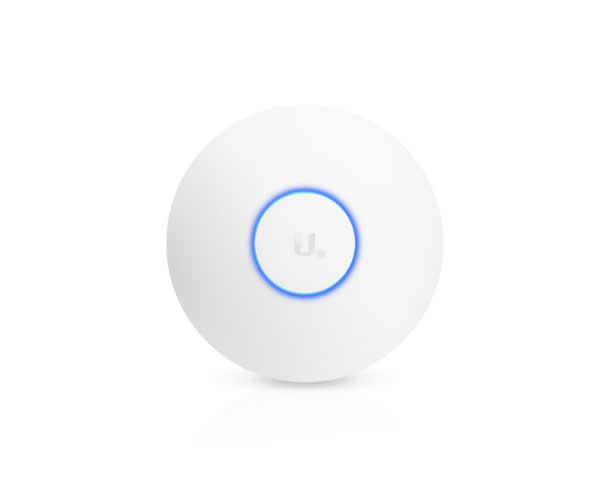

UniFi AP AC SHD là thiết bị thu phát sóng WiFi indoor/outdoor(covered). Hoạt động trên 2 băng tần 2.4 Ghz tốc độ 800Mbps và 5Ghz tốc độ 1733Mbps.
Specification AC SHD
| Dimensions | 220 x 220 x 48.1 mm (8.66 x 8.66 x 1.89″) |
| Weight | 700 g (1.54 lb) |
| Networking Interface | (2) 10/100/1000 Ethernet Ports |
| Buttons | Reset |
| Antennas | 2.4GHz (2) Dual-Port, Dual-Polarity Antennas, 6 dBi each 5GHz (2) Dual-Port, Dual-Polarity Antennas, 6 dBi each |
| Wifi Standards | 802.11 a/b/g/n/r/k/v/ac/ac-wave2802.11 a/b/g/n/r/k/v/ac/ac-wave2 |
| Power Method | 802.3at PoE+ |
| Power Supply | UniFi Switch (PoE) |
| Maximum Power Consumption | 20W |
| Max TX Power | 2.4GHz 6-25 dBm 5GHz 6-25 dBm |
| BSSID | Up to 8 per Radio |
| Power Save | Supported |
| Wireless Security | WEP, WPA-PSK, WPA-Enterprise (WPA/WPA2, TKIP/AES) 802.11w (PMF) |
| Certifications | CE, FCC, IC |
| Mounting | Wall/Ceiling (Kits Included) |
| Operating Temperature | -10 to 70° C (14 to 158° F) |
| Operating Humidity | 5 to 95% Noncondensing |
| VLAN | 802.1Q |
| Advanced QoS | Per-User Rate Limiting |
| Guest Traffic Isolation | Supported |
| WMM | Voice, Video, Best Effort, and Background |
| Concurrent Clients | 1000+ |
| 802.11a | 6, 9, 12, 18, 24, 36, 48, 54 Mbps |
| 802.11n | 6.5 Mbps to 450 Mbps (MCS0 – MCS23, HT 20/40) |
| 802.11ac | 6.5 Mbps to 1.7 Gbps (MCS0 – MCS9 NSS1/2/3/4, VHT 20/40/80) |
| 802.11b | 1, 2, 5.5, 11 Mbps |
| 802.11g | 6, 9, 12, 18, 24, 36, 48, 54 Mbps |
| Supported Voltage Range | 44 to 57VDC |
